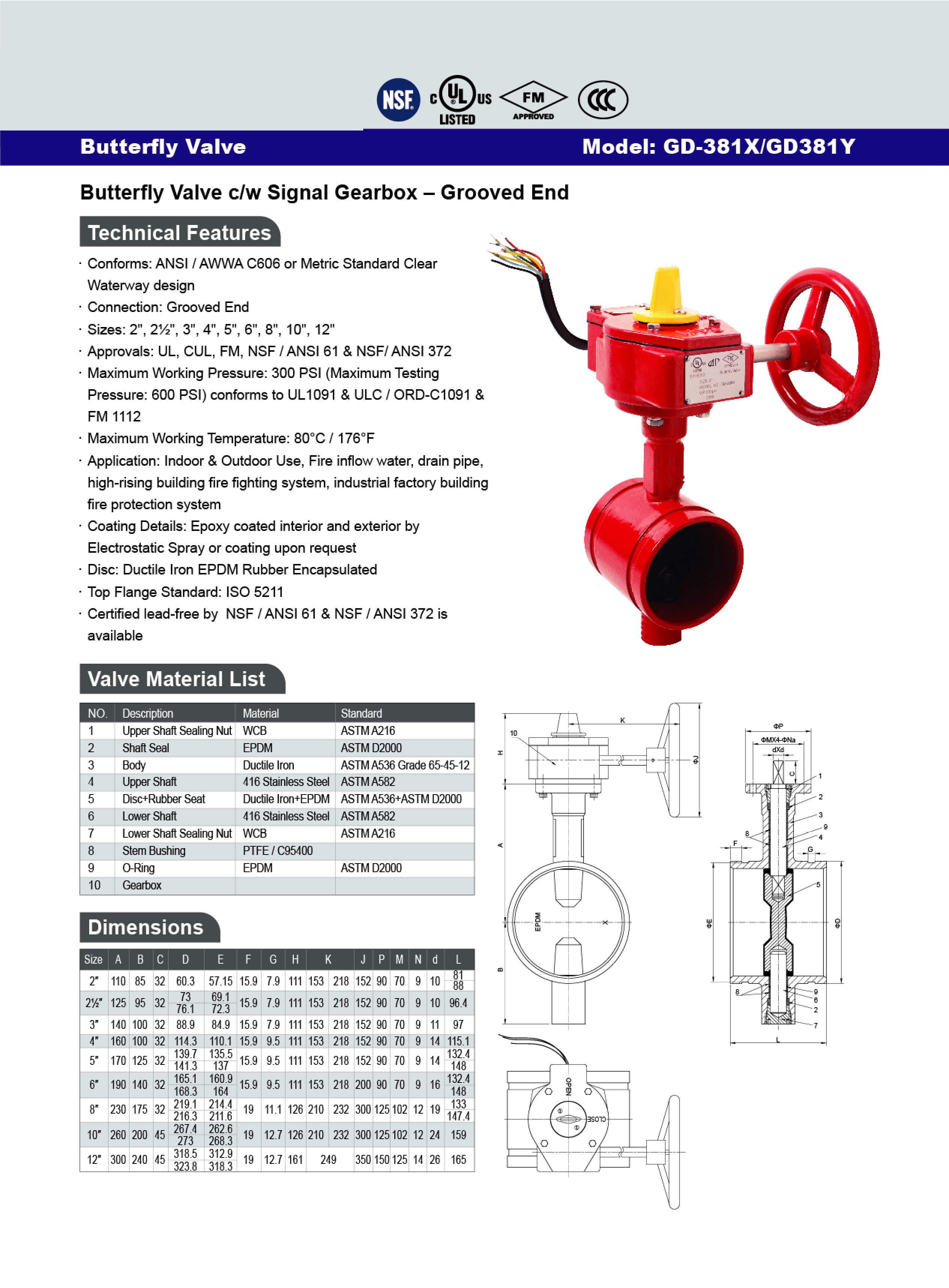

GD-381XGD381Y

Description

Technical Features
●Conforms: ANSI / AWWA C606 or Metric Standard Clear
Waterway design：
●Connection: Grooved End
●Sizes:2", 2%/ ",3",4 ",5", 6 ", 8", 10 ", 12"
●Approvals: UL, CUL, FM, NSF /ANSI 61 & NSF/ ANSI 372
●Maximum Working Pressure: 300 PSI (Maximum Testing Pressure: 600 PSI) conforms to UL1091 & ULC 1 ORD-C1091 &FM 1112
●Maximum Working Temperature: 80°C1 176°F
●Application: Indoor & Outdoor Use, Fire infow water, drain pipe,high-rising building fire fighting system, industrial factory building fire protection system
●Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or coating upon request
●Disc: Ductile lron EPDM Rubber Encapsulated
●Top Flange Standard: ISO 5211
●Certified lead-free by NSF IANSI 61 & NSF 1ANSI 372 is available
